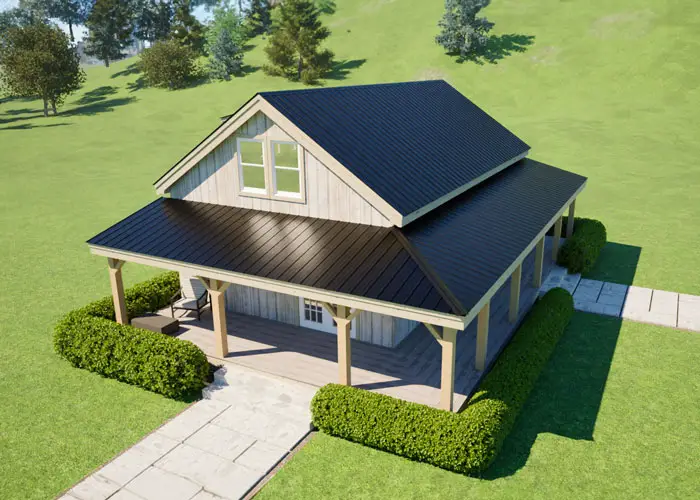

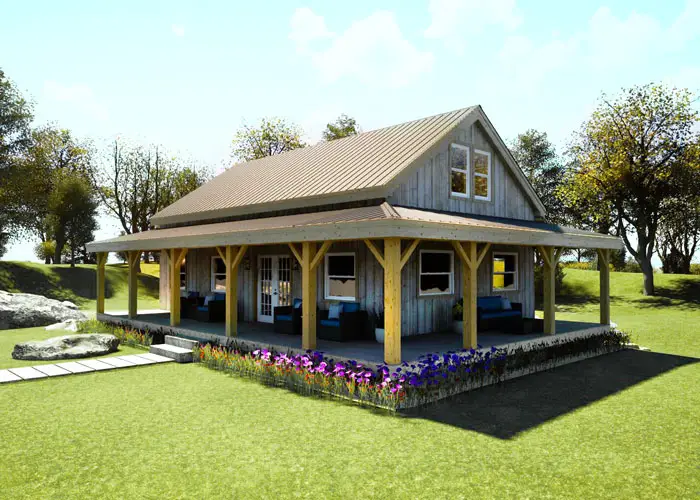

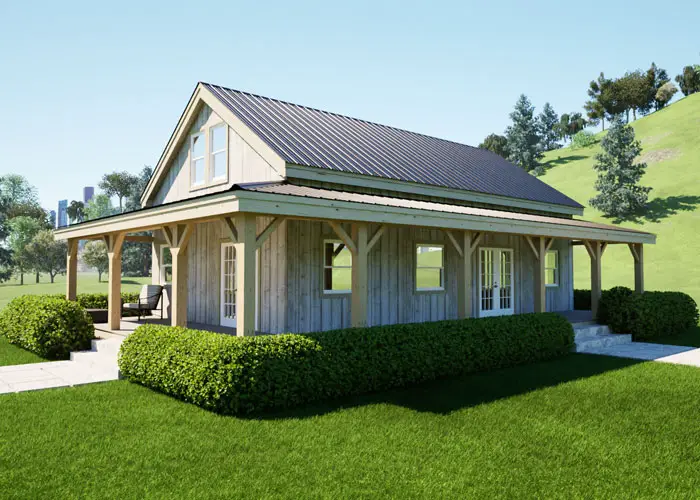

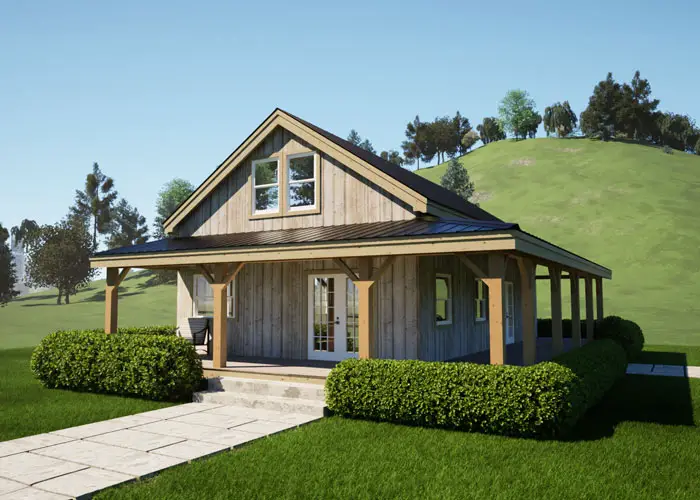

It’s quite different from any porch I’ve seen before how one is attached on all four sides of a cabin. It not only creates another space but a place that people actually fancy spending their day in reading, chatting, watching the weather changing, or simply drinking a cup of coffee sitting in a quiet corner. The wrap-around porch from Jamaica Cottage Shop (32×38 Mortise & Tenon Wrap Around Porch Kit) is specifically planned as complementary with their timber frame buildings of size 24×30, like the Vermont Cabin. The end result is a matching piece of the house that is just perfectly made so it blends in harmoniously the same day it is built.
Design for Physical Comfort and Emotional Intimacy
A porch is more than a platform attached by bolts. Eight feet deep, so it provides enough space for comfortable furniture a pair of rocking chairs and a small table if needed even two Adirondacks where there is an aisle space. The design of this wrap-around layout allows approximately 180 degrees of views, so you never run the risk of becoming a spectator facing a corner. No matter if the cabin is situated in a place like a homestead in the country, a house in a woodlot close to the edge, or in the neighborhood of a waterbody, the porch is a bridge for the cabin between the two worlds, inside and outside.
Joinery techniques such as mortise-and-tenon are the structural features of the porch that Jamaica Cottage Shop has used for their post-and-beam buildings, and they do not vary even here for the exterior part. The wall framing consists of hemlock posts and beams which give the porch the look of being substantial and classic that has a life of its own and withstands all weather conditions. The wallheight is 96 inches tall and the wall space feels generous as opposed to claustrophobic. The roof with a 3/12 pitch which is the style of a shed roof effectively drains the water at the same time preserving a modest silhouette that the height-wise and scale-wise is in proportion to the main cabin.
What’s Included in the Fully Built-Up Exterior Envelope?
The kit is delivered as a complete shell, watertight, that is ready for you to apply the finishing touches once the building is put together. The area of the building is about 496 sq ft., with overall length of approximately 40 feet 4 inches and the width of about 32 feet 4 inches.
With such additional length and width, the porch of 24×30 cabin can be wrapped by just this kit without feeling forced.
Base floor framing is based on a three carry beam 2×10 treated system that can be placed upon concrete piers or the surface of a poured ground floor slab. The frame structure of the roof consists of 2×8 SPF rafters which are spaced at 16in on center; if you decide to upgrade the material for your frame, other options are available as well.
Corners, eaves, and shadow boards made of roughly cut-sawn pine are just some of the trim features that complete the look and feel of this porch in a way it seems to be thoughtfully designed rather than a temporary or semi permanent addition.
Having been a pre-cut kit, it’s the case that each component has been tagged and cut to the correct dimensions in advance. The drawings come with you, detailing the work step by step, a color-coded cut list, and views showing exploded details that simplify the building work for the person that is able to make use of the basics of carpentry.
Not only will you be spared the task of figuring out how to cut wood to certain angles and other geometrical complexities on your own if you start with a pile of raw material. With all these things at hand, one only has to follow the process.
How the Pre-Cut Kit Operation Functions
Jamaica Cottage Shop ships the kits to wherever you are in the country (often through free shipping!)
You will need to have a forklift or some similar device on site if delivery by freight is required to bring the item to locations that are farther than just a few hundred miles. You can occasionally just carry a load less than 3, 000 lbs on your back, but using equipment when unloading is a good idea that can save you potential trouble. Also, do not throw away those stickers on the wood they show you how to assemble the things properly.
For the day of receiving a product a vehicle with a trailer and a driver must have somewhere to park without blocking the public road. When the supplies are unloaded, the packaging will help you not only to keep the materials sorted but also to be ready with documentation which, in the case of a large project that may become overwhelming for you, could actually make your life a bit easier. You always have the option of getting in touch if there are some concerns.
Options of Customizing to Suit Your Interior and Exterior
The structure of the shell will remain constant, and yet the most of cabiners prefer to customize the parts on their own. For example, a different type and color of roof can be chosen; you can upgrade the rafters or add insulation; you can also choose the types and colors of siding such as pine or cedar; the floor system can be changed, different types of jowls or decking can be added and so on; then you will decide what doors and windows match the cabin of your home; if later part of the living area is intended to be either enclosed or heated, there are choices of upgrading both frame walls and insulation.
Making all of these selections will allow your porch to be integrated with nature or the architectural style of the main building, whichever is appropriate. A rustic wood look will blend easily into nature and a paint finish will suit a more polished style. You will see exactly what the different choices will look like because Jamaica Cottage Shop site’s configurator takes you through the whole process of customizing the package that will be a result of all your choices.
Why Many Cabiners Are Attracted to This Addition
A covered porch not only opens up space, it creates a natural place to hang out, boosts the aesthetic value of the landscape, and gives the house a complete look. It allows cabiners to enjoy outdoor activities and be a step away from inside comforts. Those who already have or are about to build a mortise-and-tenon cabin that is 24 ft. x 30 ft. by Jamaica Cottage Shop will really enjoy this kit because it is exactly matching their cabin and maintains the same high-quality woodwork.
You are interested in a porch design which looks like an integral part of the building and not a tacked-on addition, right? In that case, this mortise-and-tenon design, wrap-around porch would be a great one to check out. Look at the technical data, check what upgrade options are available, and contact a team of Jamaica Cottage Shop with your address and preferred features. It is not just the additional living space, a properly constructed porch actually makes a difference in the atmosphere of the cabin from the very moment you step in.
Source: jamaicacottageshop.com
